Steel Grating Walkway with Stair Tread for Singapore Tunnel Project

Steel grating is widely used for platforms and walkways in factories, parking lots, ports, and public pedestrian areas. It features a large open area for effective drainage and ventilation, and is easy to install and maintain.

Project Description

We customize steel grating walkways and stair treads based on customer requirements, as supplied for the cable tunnel project in Singapore.

• Product name: Steel grating
• Applications: Walkway and stair tread
• Country: Singapore
• Grating type: Forge welding
• Material: Carbon steel
• Bearing bar: 25 × 5 mm, 32 × 5 mm
• Cross bar: 6 mm twisted
• Pitch of bearing bar / cross bar: 40 × 100 mm
• Size: 1200 × 900 mm, 1044 × 285 mm
• Surface treatment: Hot dip galvanized complete with 3 coat painting system (done in Singapore).

Project Pictures

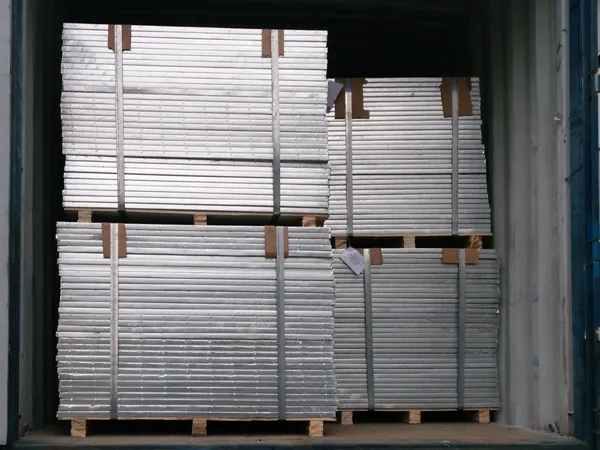

Steel grating transportation

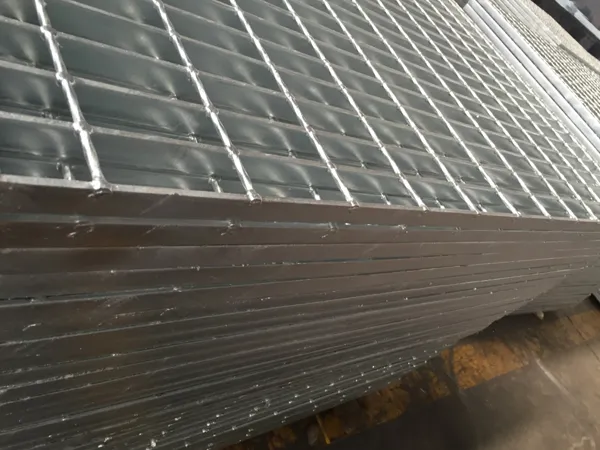

Steel grating details

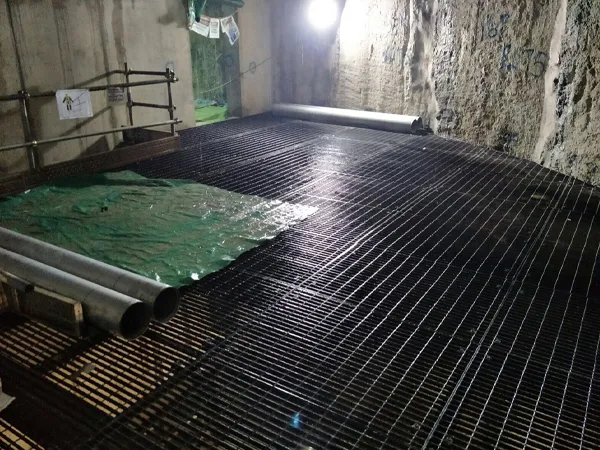

Installation

Steel grating walkway
