Custom Anti-Slip Diamond Pattern Steel Grating with Excellent Drainage

Diamond pattern steel grating, also referred to as triangular pattern steel grating, is a type of fabricated steel grating with diamond or triangular-shaped openings. Compared with standard bar grating designs, it is produced through customized welding or pressing processes to achieve improved structural strength and surface performance.

The geometric pattern provides excellent anti-slip performance, making it suitable for safety-critical environments. The angular surface increases friction and helps reduce slipping risks under wet, oily, or dusty conditions. In addition, the open mesh structure ensures efficient drainage, ventilation, and debris removal, helping maintain clean and safe working surfaces.

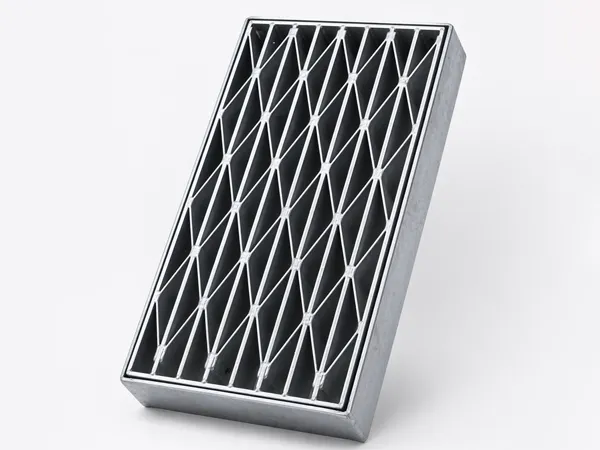

DSG-01: Diamond pattern steel grating

Specifications

• Material: Carbon steel, stainless steel, or other alloys
• Surface treatment: Hot-dip galvanizing or protective coatings
• Load capacity: Designed to meet required load-bearing specifications
• Customization: Custom sizes and diamond or triangular pattern openings available based on drawings or project requirements

Features

• Anti-slip performance. Improves surface traction for safer walking conditions.
• Efficient drainage. Open design reduces water accumulation.
• High load-bearing structure. Suitable for industrial flooring and heavy-duty use.
• Corrosion resistance. Optional galvanized or stainless steel for durability.
• Custom fabrication. Available in custom sizes, patterns, and specifications.

Applications

• Industrial platforms and walkways
• Drainage and wastewater systems
• Stair treads and safety ramps
• Marine and offshore structures
• Parking and public access areas
• Oil, gas, and chemical facilities

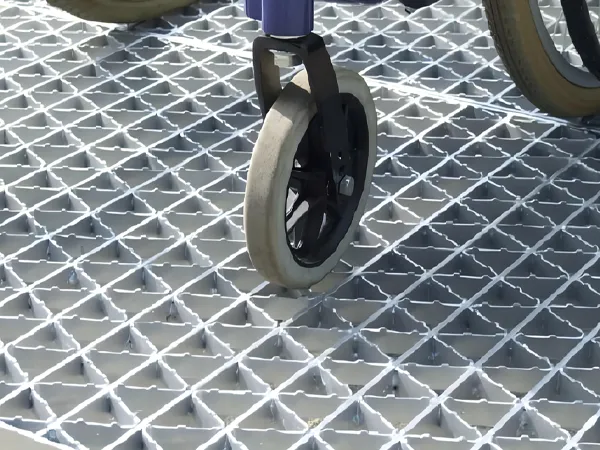

DSG-02: Diamond pattern steel grating for walkway areas

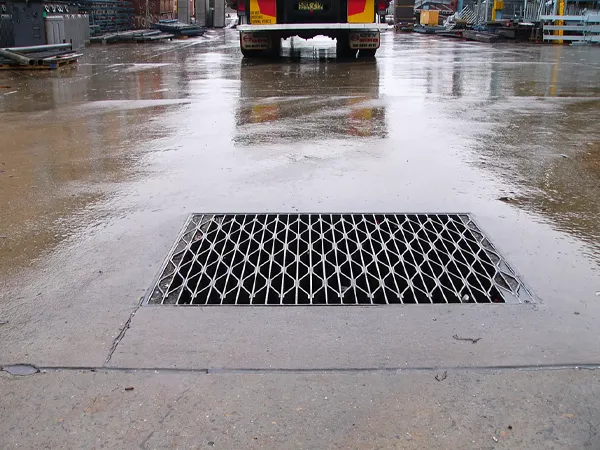

DSG-03: Diamond pattern steel grating for drainage systems

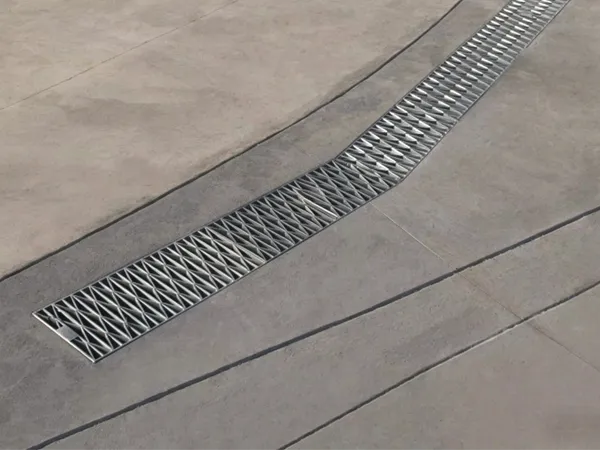

DSG-04: Diamond pattern steel grating for safety ramp
