Steel Grating Accessories for Installing Steel Grating



Steel grating accessories are used to install and fix steel grating. They are very necessary. Steel grating accessories have wear resistance, high strength and resistance to stress, rust-proof performance.

Classifications of steel grating accessories:

  1. Saddle clips: A special bent-clip type fastener for removable bar grating panels.
  2. G-clips: A special friction fastener can be used with aluminum, stainless steel and galvanized steel.
  3. Grate fast clips: Grating can be connected by one man only, working from above, without the need to drill the steel or weld on site.
  4. Weld lugs: Weld lugs may be used for installations where grating is subject to removal.
  5. Z-clip: This is the most versatile clip anchor. They are especially helpful in holding down riveted grating.
  6. R-clip: A special formed metal fastener available in various sizes to fit any job.
  7. Countersunk land: It is available for aluminum grating only. Not available for steel.
  8. Anchor block: It can be used to fasten permanent or removable grating panels.
This is saddle clips
SGA-1: Saddle clips
This is a thinner saddle clips
SGA-2: Thinner saddle clips.

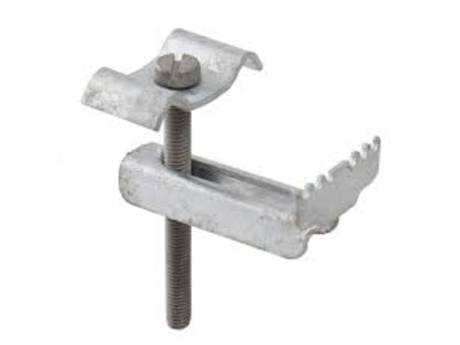

This is a grate fast clip
SGA-3: Grate fast clip.
This is a G-clip.
SGA-4: G-clips.

Specifications:

  • Material: carbon steel or stainless steel.
  • Surface treatment: galvanized.

Features:

  • Steel grating accessories are used to install and fix steel grating.
  • High strength and resistance to stress.
  • Corrosion proof.
  • Do not damage the galvanized layer.
  • It can be demolished at any time, reused.
  • Easy to install.
This is a saddle clip in steel grating.
SGA-5: Saddle clip in steel grating.

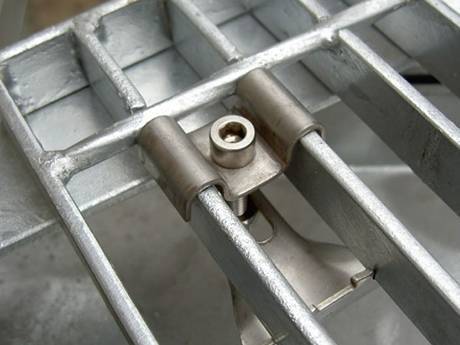

This is a steel grating fast clip.
SGA-6: Grate fast clip enables rapid and secure connection of open grate flooring to steel sections.

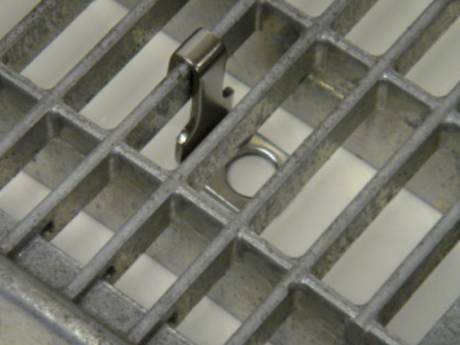

This is a R-clip is used in the steel grating.
SGA-7: R-clip is a special steel grating accessories that is available in various sizes to meet different needs.
This is a steel grating with a G type clip to fix it.
SGA-8: G type clip.

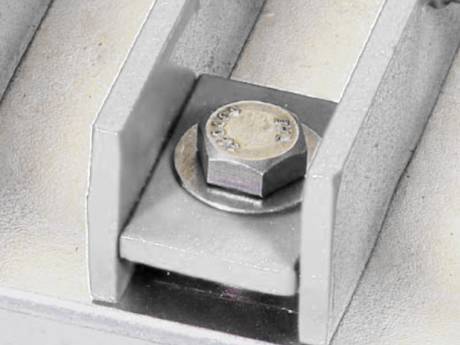

This is a weld lug is used in steel grating.
SGA-9: Weld lugs can be used for installations where grating is subject to removal.

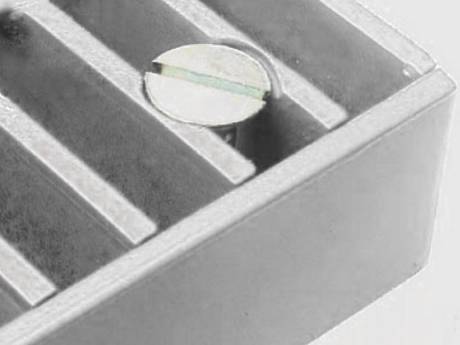

This is a steel grating with countersunk land in it.
SGA-10: Countersunk land is available for aluminum grating only.

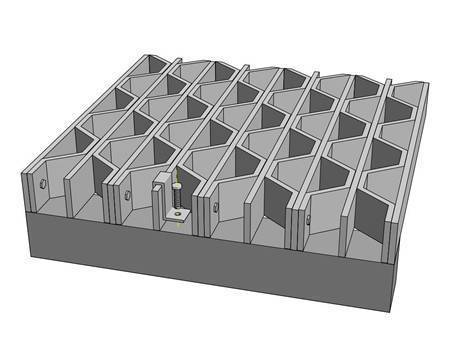

This is a steel grating with a Z-clip in it.
SGA-11: Z-clip is specially helpful used in riveted grating.
This is a steel grating with two anchor blocks to fix it.
SGA-12: Anchor block can be used to fasten permanent or removable grating panels.
