I Bar Steel Grating –Light Weight but High Strength

I shape bearing bars supplies lighter weight when the strength is equal to rectangular bar steel grating. I bar steel grating is suitable for both commercial and industrial applications.

Special I shape bearing bars.
Lighter weight and high strength.
Carbon steel, galvanized steel or stainless steel material options.
Ideal for both commercial and industrial applications.
Wide range of configurations for choice.
Special discount for large orders.
Project reference can be supplied for your bid.
ISO Certificated factory.
CAD or 3D drawing can be supplied for your design and construction.

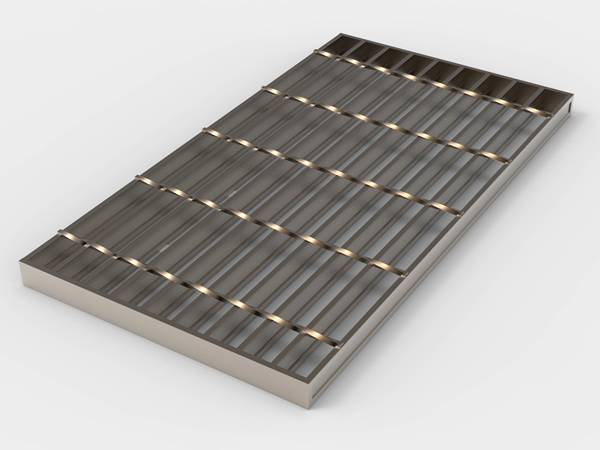

A piece of steel grating with I shape bearing bars.

I Bar steel grating is lightweight but high strength

Material Types

Carbon Steel

Galvanized Steel

Stainless Steel

Surface Type

Smooth Surface

Serrated Surface

Dimensions

Bearing bar sizes (mm)	25 × 5 × 3, 32 × 5 × 3, 38 × 5 × 3, 50 × 7 × 4, 60 × 7 × 4, 75 × 7 × 4
Bearing bar pitch (mm)	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60
Cross bar pitch (mm)	38, 50, 76, 100, 101.6

Resources

Applications

Platform

Walkway

Stair Treads
