Custom Steel Grating Walkway for a Water and Power Plant in the UAE

Steel grating walkways provide safe, durable, and slip-resistant access in water and power plants. The open-grid structure provides efficient drainage, high load capacity, and easy installation.

Project Description

We customized hot-dip galvanized steel grating walkways for a water and power plant project in the UAE. The walkways were manufactured to dimensions and specifications determined by the customer’s requirements and actual site conditions.

• Product name: Steel grating walkway
• Application: Walkway for a water and power plant
• Country: United Arab Emirates (UAE)
• Grating type: Forge-welded steel grating
• Material: Carbon steel
• Bearing bar: 40 × 4 mm smooth flat bar
• Cross bar: 8 mm twisted square bar
• Bearing bar spacing / cross bar spacing: 25 × 75 mm
• Size: Customized according to actual site conditions
• Surface Treatment: Hot-dip galvanized

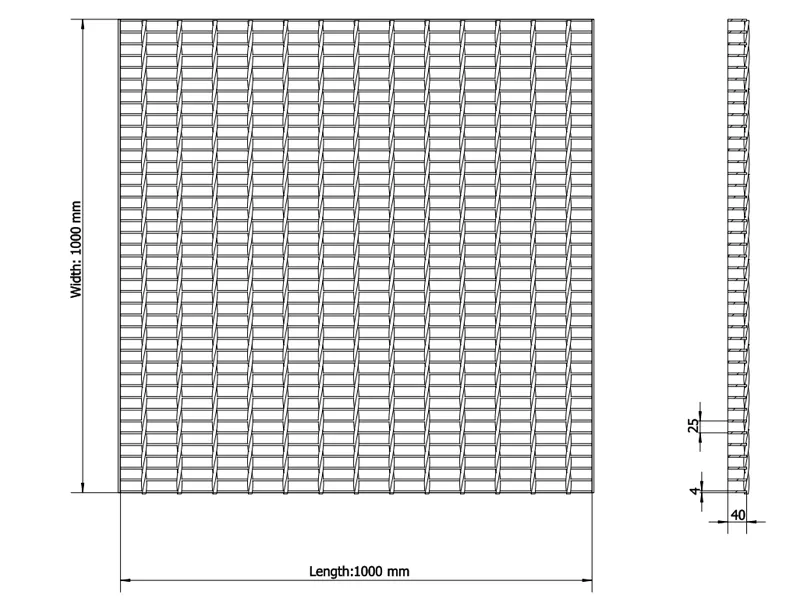

Steel grating walkway drawing

Project Pictures

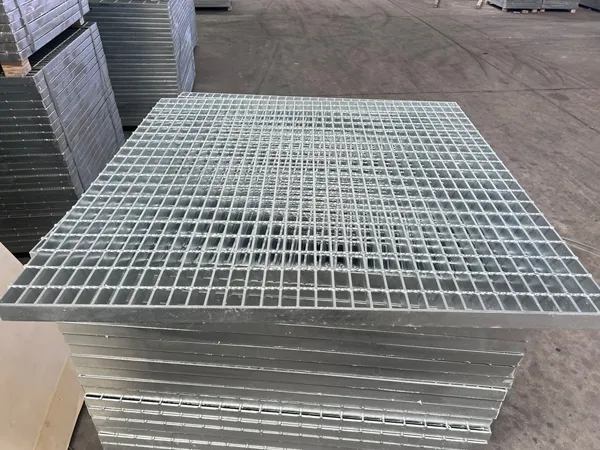

Finished steel grating walkway panels

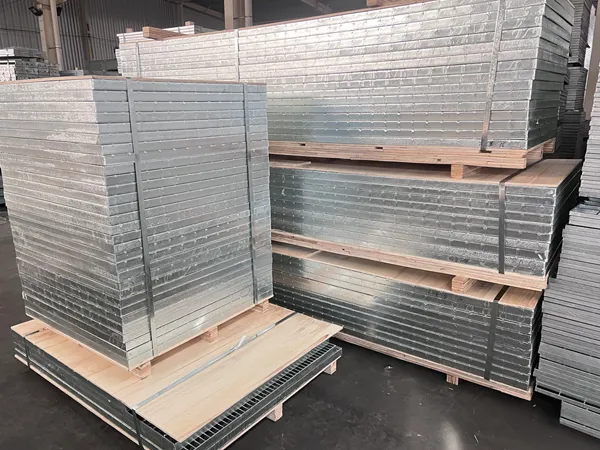

Steel grating walkway packaging

Installation

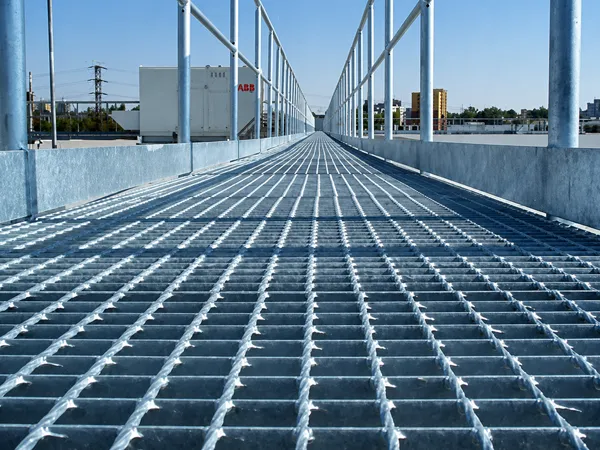

Steel grating walkway installation
