Steel Grating Pedestrian Bridge with Stairs and Handrails for Drilling Sites

The steel grating pedestrian bridge provides a safe and permanent route over pipelines, hoses, and utility lines in congested mud pump areas at drilling sites. Personnel frequently cross these lines during routine inspections, maintenance, and daily operations. Without a designated crossing, workers may need to step or climb over the lines, increasing the risk of trips, falls, and injuries, while also exposing hoses and pipes to damage that may result in leaks or operational downtime.

Equipped with end stairs, side handrails, and a slip-resistant walking surface, the bridge creates a clearly designated pedestrian route, improves pedestrian safety and access efficiency, and protects the pipelines and hoses below.

Project Description

The pedestrian bridge provides full clearance over existing pipelines and hoses while offering personnel a stable, slip-resistant walking surface. Designed to meet site safety requirements for pedestrian access, it provides durable performance in outdoor industrial conditions.

• Product name: Steel grating pedestrian bridge
• Application: Pedestrian crossing over pipelines and hoses at drilling sites
• Type: Pedestrian bridge with end stairs and handrails on both sides
• Overall dimensions: Customized according to customer requirements
• Design requirements
  • Slip-resistant walking surface made of steel grating or checker plate
  • Side handrails for fall protection
  • End stairs for safe access to the bridge deck
  • Load-bearing capacity suitable for personnel and light tools

Project Pictures

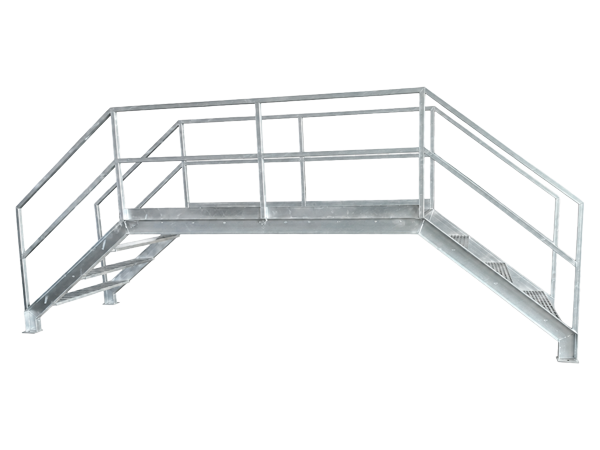

Completed steel grating pedestrian bridge

Installation

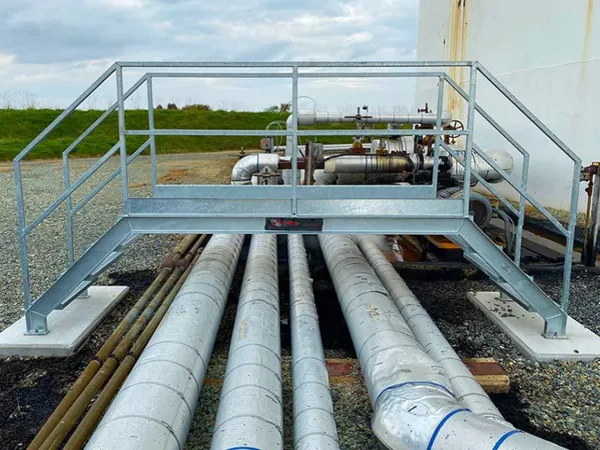

Steel grating pedestrian bridge installed over pipelines
